Masking tapes for bordering that take full advantage of the base material's flexibility.
Features
- Various sizes
- Non-standard sizes can also be ordered.
- Can be overlapped
- Tape can adhere its own back surface.
- Temporary adhesion
- Temporarily affixes bags and containers for temporary adhesion, etc.
- Heat resistance
- After heat treatment, adhesive strength does not increase so it can be peeled off without leaving any residue.
Colors

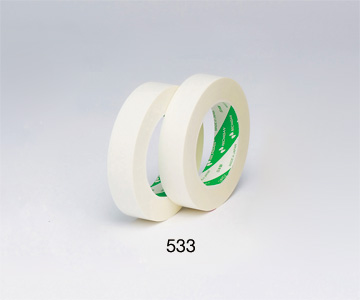

- No.533 / 533Y / 533A
- White

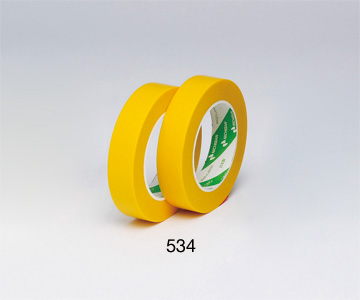

- No.534 / 534Y / 532A / 532T
- Yellow

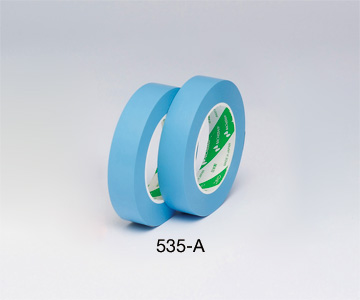

- No.535-A / 535Y
- Blue
Applications
- For vehicle/industrial heat resistant masking, etc.
- For masking polyurethane or polypropylene vehicle bumpers, or curved and uneven surfaces.
Physical Properties
Product number: 533*
| Product name |
PVC Masking Tape |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Rubber adhesive |
| Thickness (mm) |
0.12 |
| Peel strength (N/10mm) |
2.97 |
| Tensile strength (N/10mm) |
30.0 |
| Elongation (%) |
257 |
| Features |
General purpose type |
Product number: 533Y*
| Product name |
PVC Masking Tapes |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Rubber adhesive |
| Thickness (mm) |
0.12 |
| Peel strength (N/10mm) |
2.21 |
| Tensile strength (N/10mm) |
26.0 |
| Elongation (%) |
254 |
| Features |
533 with increased flexibility |
Product number: 534*
| Product name |
PVC Masking Tape |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Rubber adhesive |
| Thickness (mm) |
0.12 |
| Peel strength (N/10mm) |
3.28 |
| Tensile strength (N/10mm) |
29.2 |
| Elongation (%) |
261 |
| Features |
Yellow type |
Product number: 534Y*
| Product name |
PVC Masking Tape |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Rubber adhesive |
| Thickness (mm) |
0.12 |
| Peel strength (N/10mm) |
2.52 |
| Tensile strength (N/10mm) |
25.7 |
| Elongation (%) |
250 |
| Features |
534 with increased flexibility |
Product number: 535A*
| Product name |
PVC Masking Tape |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Acrylic adhesive |
| Thickness (mm) |
0.13 |
| Peel strength (N/10mm) |
1.71 |
| Tensile strength (N/10mm) |
32.1 |
| Elongation (%) |
271 |
| Features |
Blue type |
Product number: 535Y*
| Product name |
PVC Masking Tape |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Acrylic adhesive |
| Thickness (mm) |
0.12 |
| Peel strength (N/10mm) |
1.42 |
| Tensile strength (N/10mm) |
26.6 |
| Elongation (%) |
260 |
| Features |
535 with increased flexibility |
Product number: 532A (with liner)
| Product name |
PVC Masking Tape |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Acrylic adhesive |
| Thickness (mm) |
0.12 |
| Peel strength (N/10mm) |
1.80 |
| Tensile strength (N/10mm) |
26.6 |
| Elongation (%) |
230 |
| Features |
Excellent solvent resistance. For punch processing |
Product number: 532T (with liner)
| Product name |
PVC Masking Tape |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Rubber adhesive |
| Thickness (mm) |
0.12 |
| Peel strength (N/10mm) |
1.93 |
| Tensile strength (N/10mm) |
27.3 |
| Elongation (%) |
210 |
| Features |
Excellent solvent resistance. For punch processing |
Product number: 533A (with liner)
| Product name |
PVC Masking Tape |
| Base material |
PVC |
| Maximum temperature resistance (°C for 30 mins) |
160 |
| Pressure sensitive adhesive |
Rubber adhesive |
| Thickness (mm) |
0.15 |
| Peel strength (N/10mm) |
3.71 |
| Tensile strength (N/10mm) |
38.6 |
| Elongation (%) |
293 |
| Features |
Thicker base material |
Measurement conditions / 23℃50%RH
Quantity (rolls)
PVC masking tape (50m)
| Width (mm) |
Individual packaging |
Carton box |
| 12 |
20 |
120 |
| 15 |
15 |
90 |
| 19 |
10 |
60 |
| 25 |
10 |
60 |
| 30 |
6 |
36 |
| 38 |
5 |
30 |
| 50 |
5 |
30 |
Can Be Custom Ordered
| Product number |
Width |
Length |
Ordering unit |
532A (with liner)
532T (with liner)
533A (with liner) |
240mm
320mm
480mm |
100m
200m |
192m2 |
- *
Also applies to product numbers marked with * (533, 533Y, 534, 534Y, 535A, and 535Y).
- *
For more information, please contact our representative.
