Pre-cut type intubation tube fixing tape. The tape is pre-cut to the required length and shape, ensuring a clean and secure tube fixation.
Overview
The tape with less skin irritation realizes efficient and secure fixation of the intubation tube.
Usage
- Securing tracheal intubation tubes (for adults/securing the corner of the mouth)
Features
Precut tapes
- There is no need to cut the tape. Since the fixing method can be unified in the hospital, anyone can fix the tube cleanly and securely.
Reduces skin irritation
- As the tape expands and contracts in all directions, it follows the movement of the skin to reduce stress and reduce skin irritation.
Highly moisture permeable and adhesive
- As it has high moisture permeability, it is hard to get stuffy even if it is put on for a long time and can be fixed firmly.
Directions

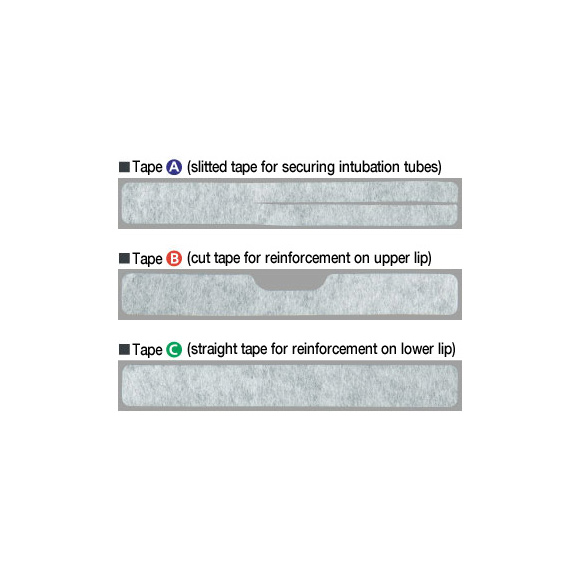

Prepare the following number of pieces:
- Tape A (for securing intubation tube) × 2
- Tape B (for reinforcement on upper lip) × 1
- Tape C (for reinforcement on lower lip) × 1
Before using Tape A
- 1.Tear at the perforations.
- 2.Remove the release paper from the piece with no perforations.
- 3.Remove only the release paper from the piece to be applied to the skin.
-

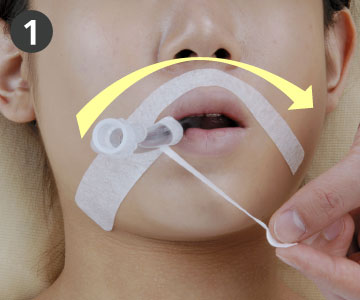

1
Applying the first piece of Tape A (for securing the intubation tube):
Align the perforation with the corner of the mouth and apply the upper side of the tape along the upper lip without stretching the tape.
-

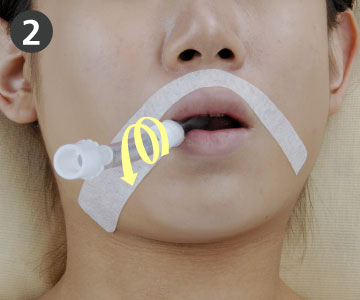

2
Wrap the lower side of the tape around the intubation tube without stretching the tape.
-

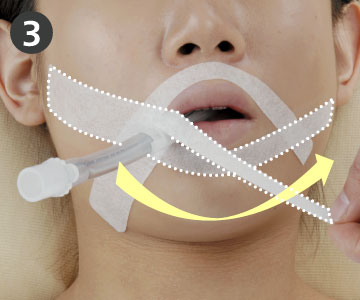

3
Applying the second piece of Tape A (for securing the intubation tube):
Align the perforation with the corner of the mouth and apply the lower side of the tape along the lower lip without stretching the tape.
-

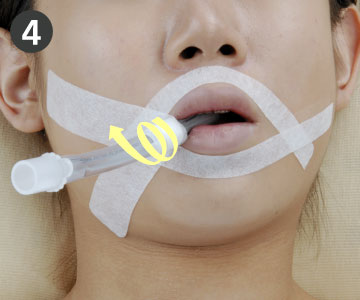

4
Wrap the upper side of the tape around the intubation tube without stretching the tape.
-

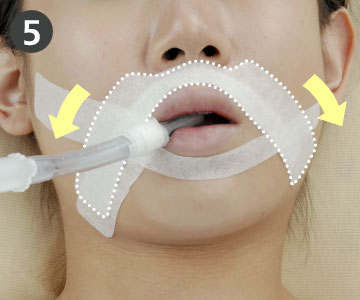

5
Applying Tape B (for reinforcement on upper lip):
Apply Tape B to cover Tape A with the depression under the nose without stretching the tape.
-

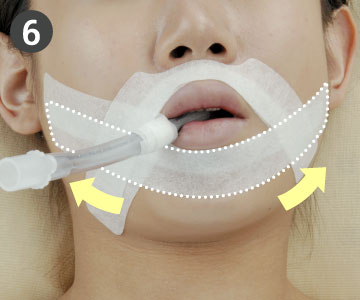

6
Applying Tape C (for reinforcement on lower lip):
Apply Tape C along the lower lip to cover Tape A without stretching the tape.
-

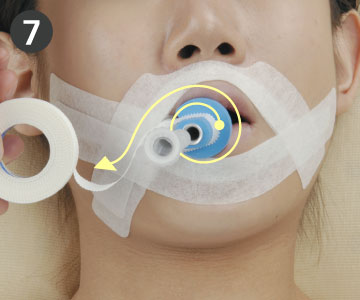

7
Securing the bite block:
Secure the bite block to the intubation tube with surgical tape.
-

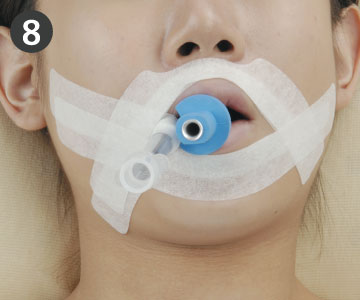

8
Done!
This completes the application process.
Precautions
- To obtain good fixation, wipe off the moisture from where the tape is to be applied and dry before applying.
- Applying with the tape extended may cause skin irritation. Please apply the tape on the skin without stretching.
- Do not apply directly to a wound.
- If symptoms such as rash, redness and itchiness appear during use, stop using.
- Please remove slowly along the flow of hair so as not to damage the skin.
Storage Instructions
- Store at room temperature, away from water, high temperatures, high humidity and direct sunlight.
Specifications
Product number | Size | Per box |
---|---|---|
TR-A | 25 mm × 200 mm (Tape A: slit type) | 50 sheets |
TR-B | 25 mm × 200 mm (Tape B: cut type) | 50 sheets |
TR-C | 25 mm × 200 mm (Tape A: straight type) | 50 sheets |
